Description

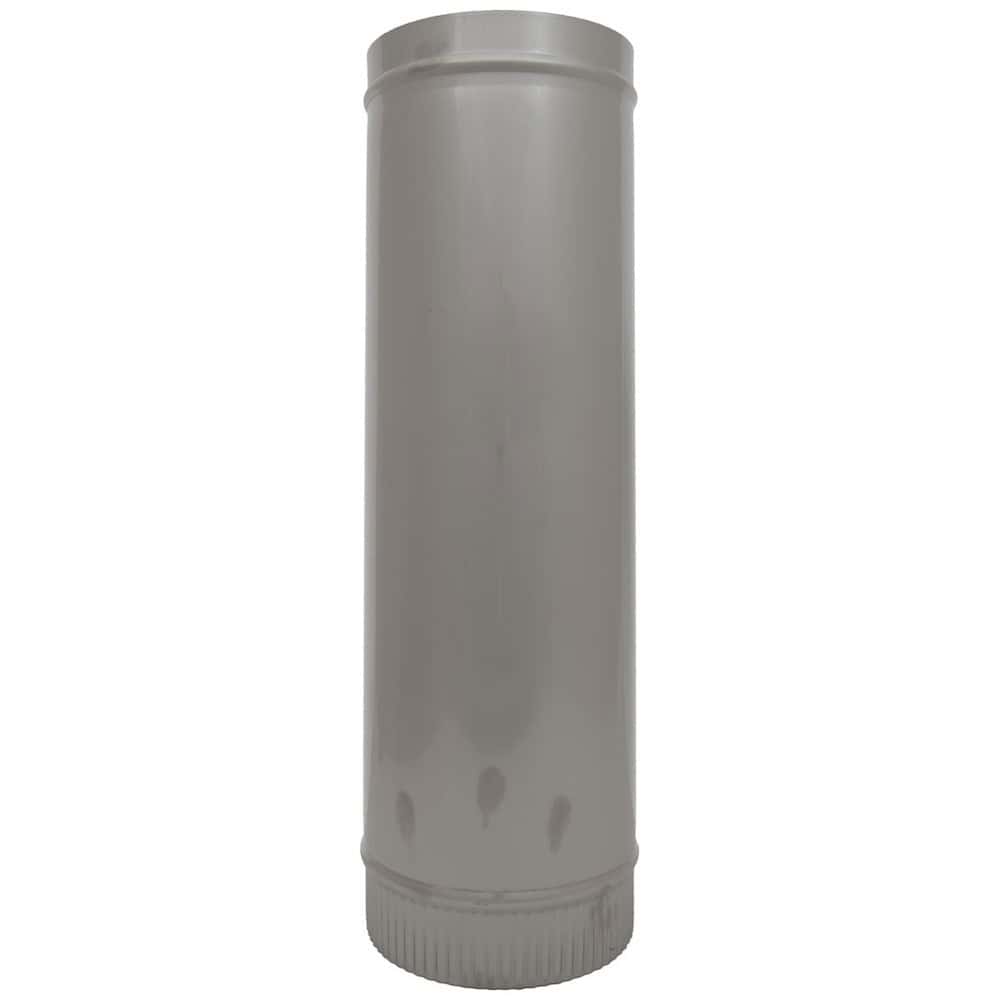

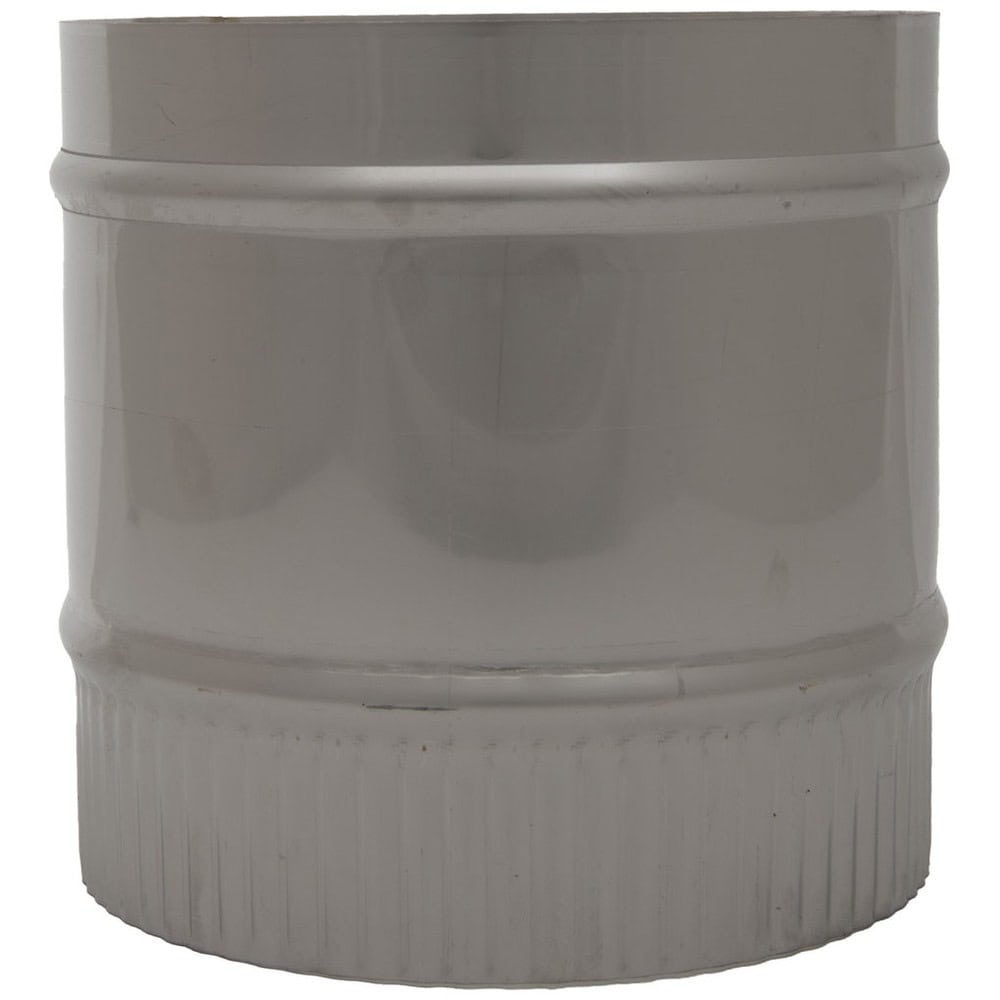

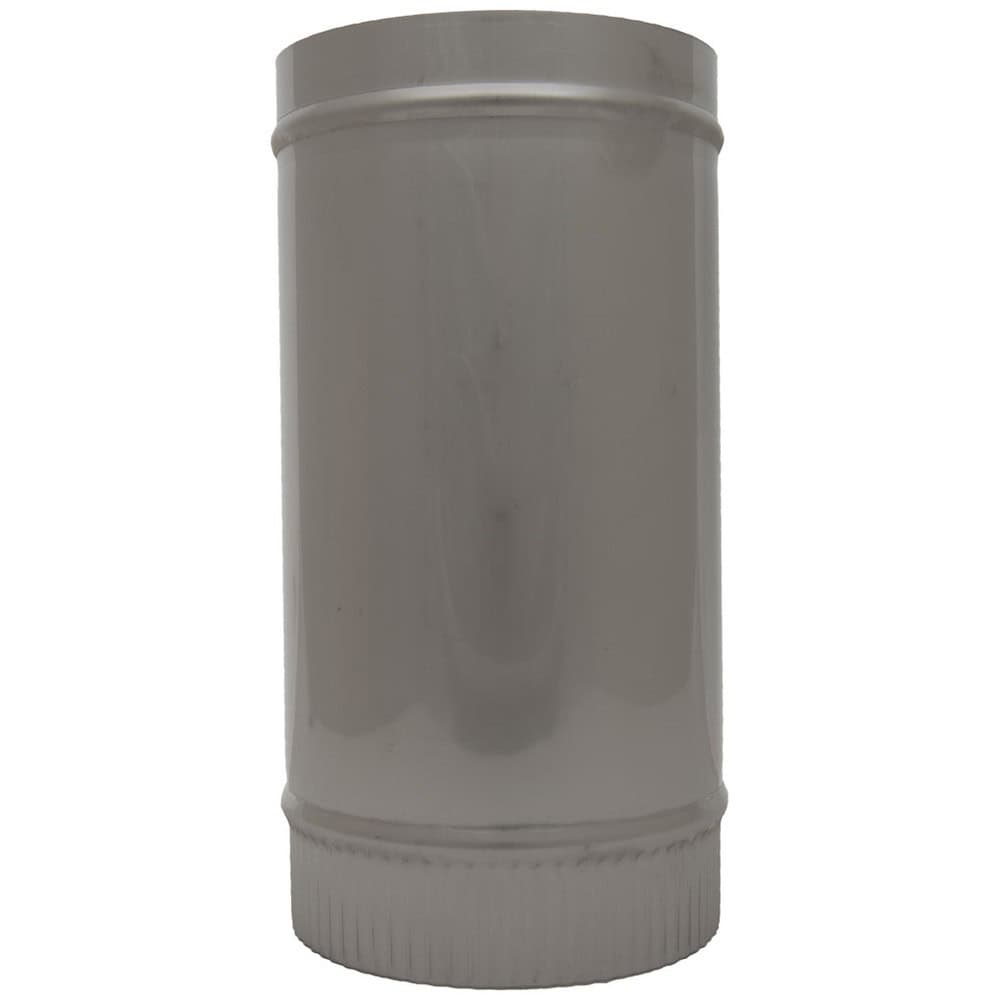

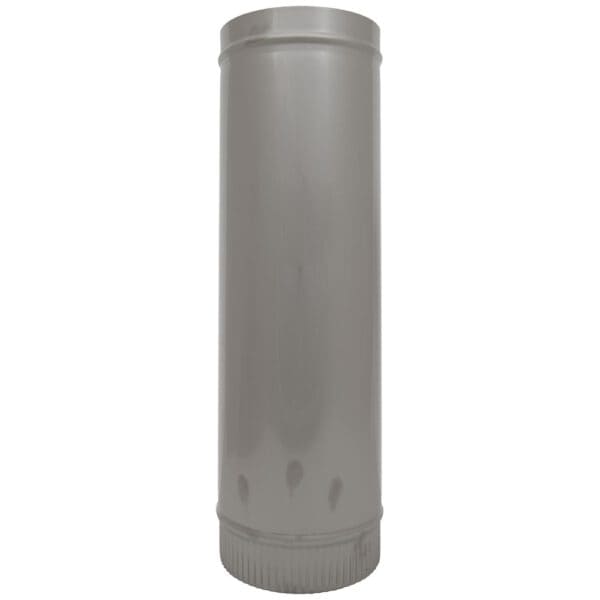

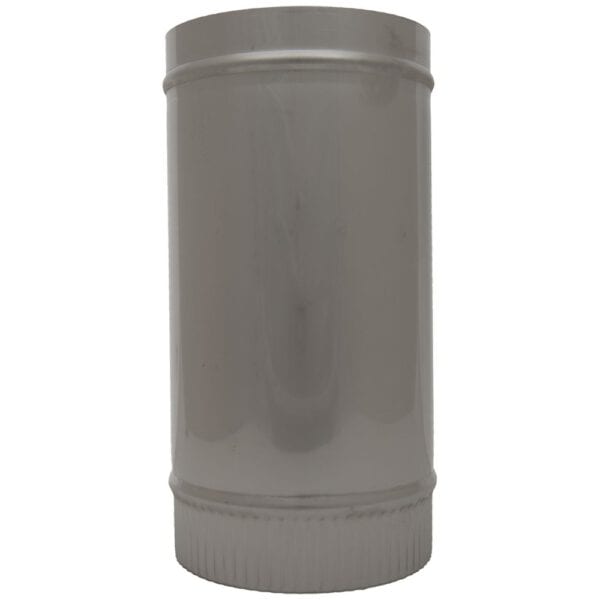

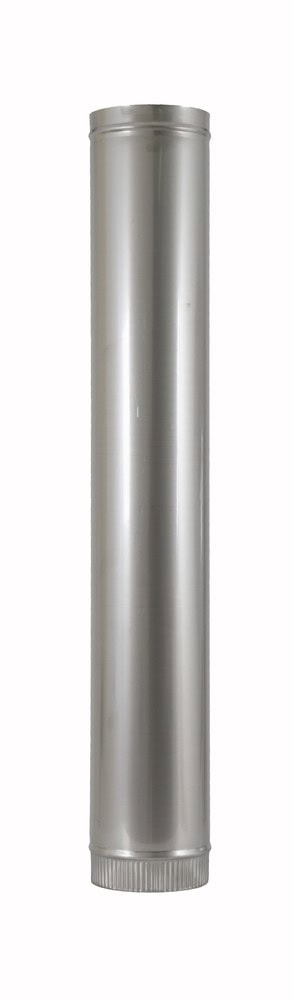

Our straight length single wall flue pipe is available in 150mm, 300mm, 500mm and 1000mm lengths, between 4″ – 10″ diameter. It is designed with an easy to use socket/spigot and quick action clamp jointing system.
Pipe Details:
Material: Manufactured using 1mm thick 316L Stainless Steel.
Finish: 2B matt finish – suitable for painting
Note: All pipes come with a 40mm crimp that is designed to fit into the stove spigot or another pipe, therefore the overall useable length of pipe will be 40mm less than ordered. E.g. a 300mm pipe has a usage length of 260mm.
|
Internal Pipe Diameter (inches) |
Internal Pipe Diameter (mm) |
| 4″ | 102.3mm |
| 5″ | 127.5mm |
| 6″ | 153.2mm |
| 7″ | 178.0mm |
| 8″ | 203.4mm |
| 9″ | 228.0mm |
| 10″ | 254.3mm |
Suitable for use on applications fired by gas, oil and solid fuel, and can be used to fuel all types of domestic appliances.
Approvals: HETAS Approved & CE approved EN 1856-2:2009 T450 N1 D Vm L40100-G500
