Description

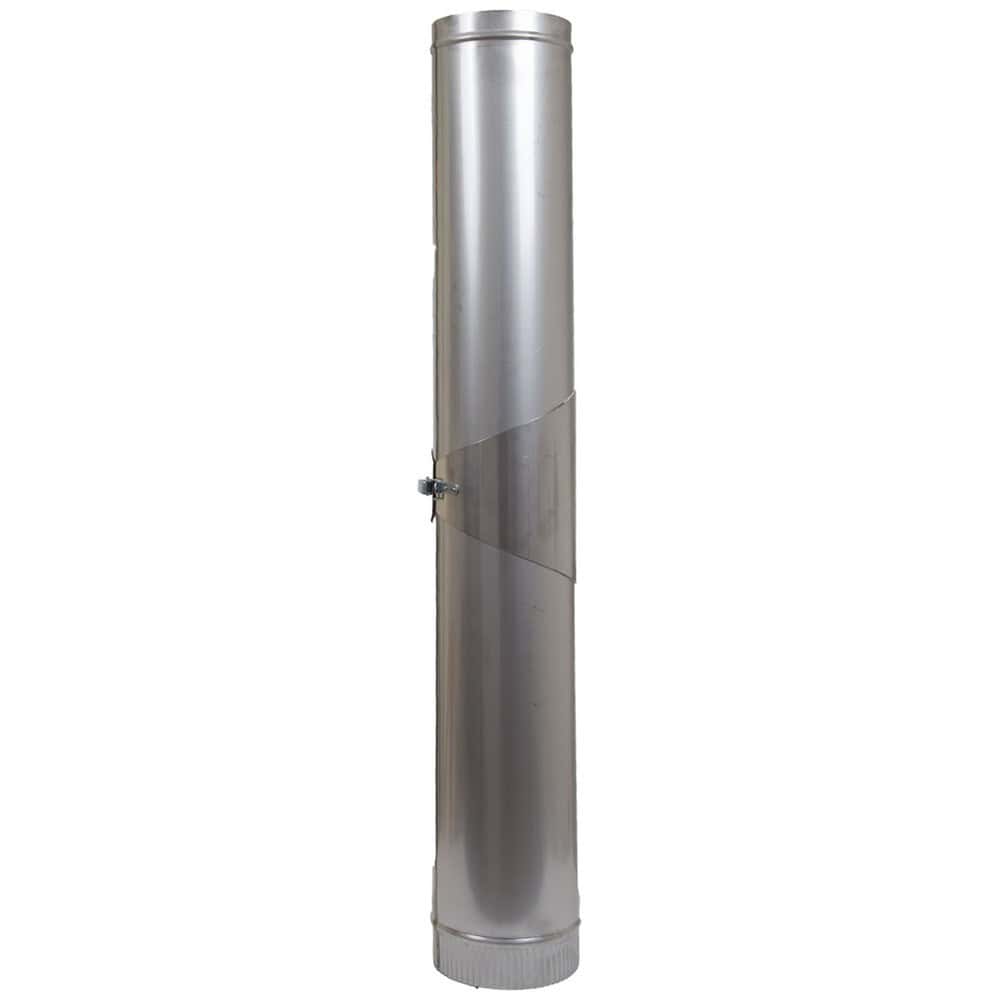

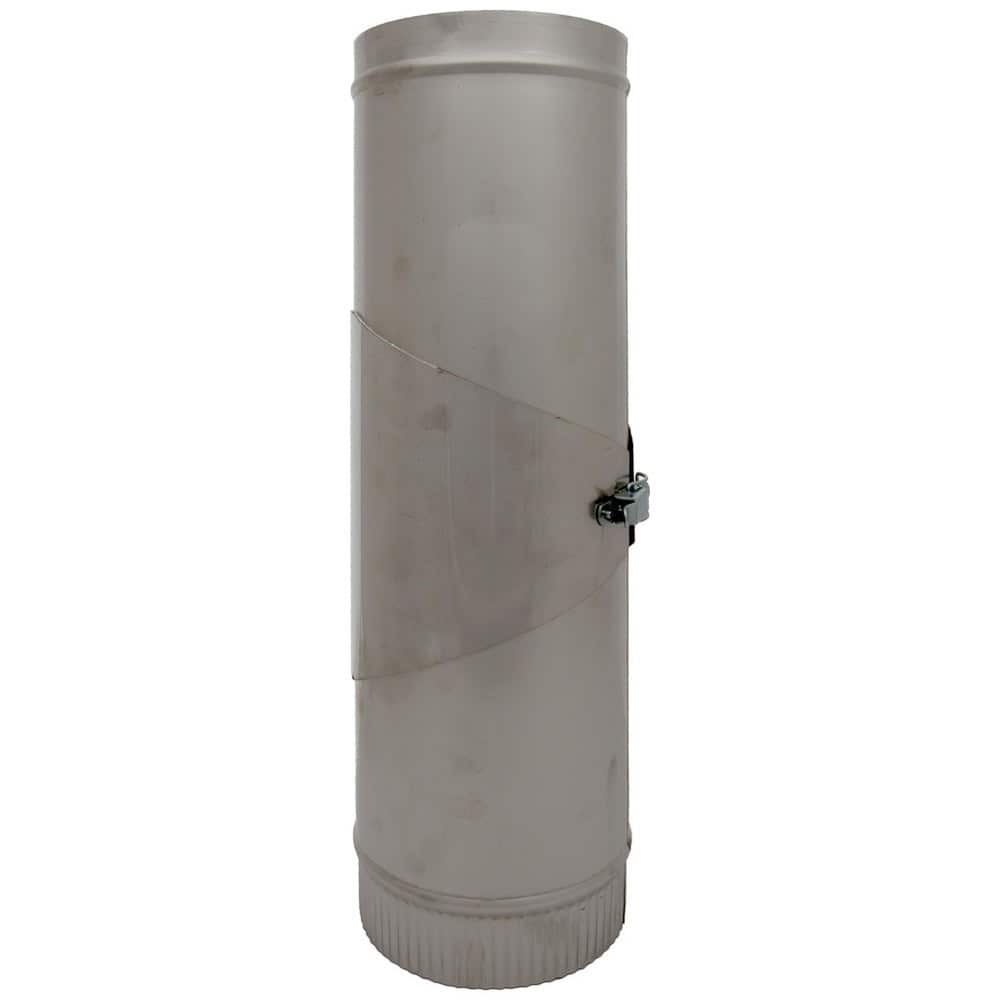

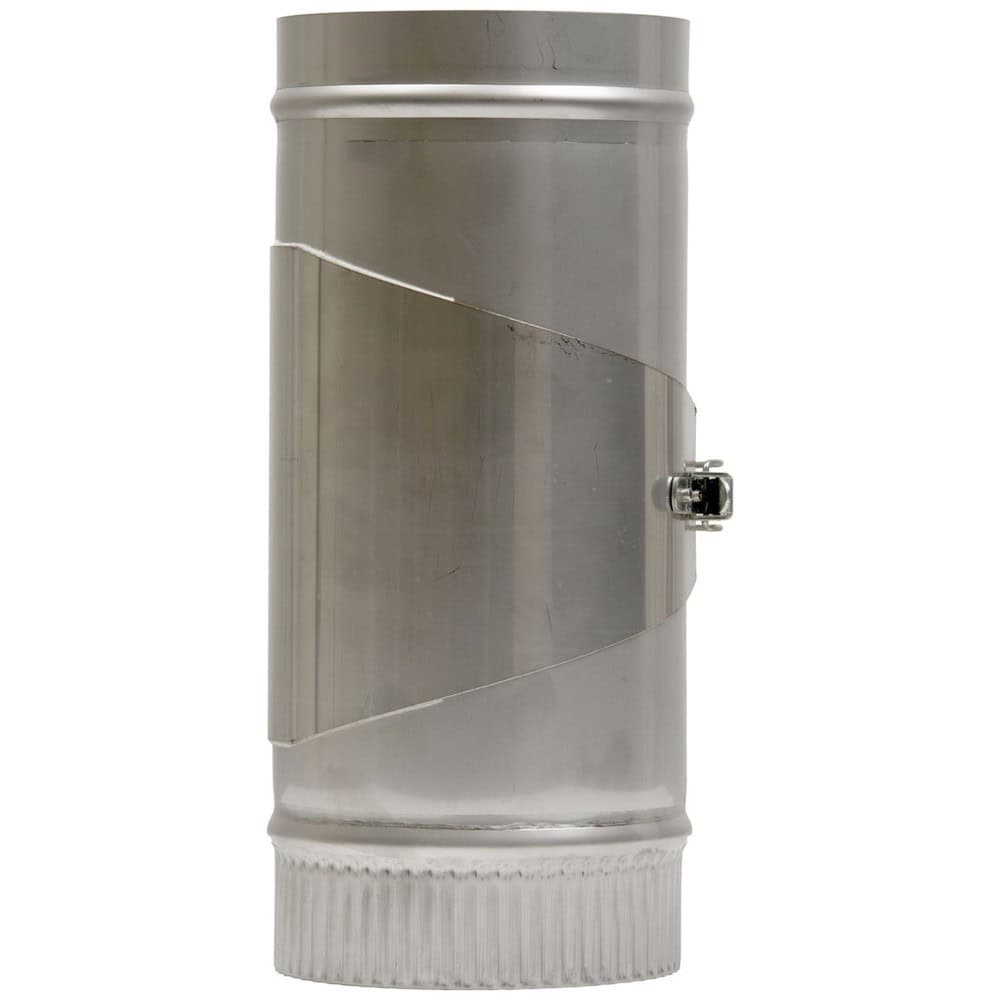

Straight length single wall flue pipe with Clean Out Door is available in 300mm, 500mm and 1000mm lengths, between 4″ – 10″ diameter.
For all pipes the clean out door diameter is the same as the pipe diameter to allow the correct size sweeping brush to be used. The clean out door is cut in the center of the pipe, please contact us if you need the clean out door locating in a different place*. Also included is a high temperature fiber gasket to cover the joint between the pipe and clean out door.
Pipe Details:
Material: Manufactured using 1mm thick 316L Stainless Steel.
Finish: 2B matt finish – suitable for painting
Note: All pipes come with a 40mm crimp that is designed to fit into the stove spigot or another pipe, therefore the overall useable length of pipe will be 40mm less than ordered. E.g. a 300mm pipe has a usage length of 260mm.
| Internal Pipe Diameter (inches) | Internal Pipe Diameter (mm) |
| 4″ | 102.3mm |
| 5″ | 127.5mm |
| 6″ | 153.2mm |
| 7″ | 178.0mm |
| 8″ | 203.4mm |
| 9″ | 228.0mm |
| 10″ | 254.3mm |
Suitable for use on applications fired by gas, oil and solid fuel, and can be used to fuel all types of domestic appliances.
Approvals: HETAS Approved & CE approved EN 1856-2:2009 T450 N1 D Vm L40100-G500
*Custom fabrications may incur additional charges, please contact us for a quote before ordering.
