Flue Pipe

£10.45£78.10

Stainless Steel Single Wall Flue Pipe – 1mm 316 Stainless Steel

Clear
SKU: N/A Category:

Description

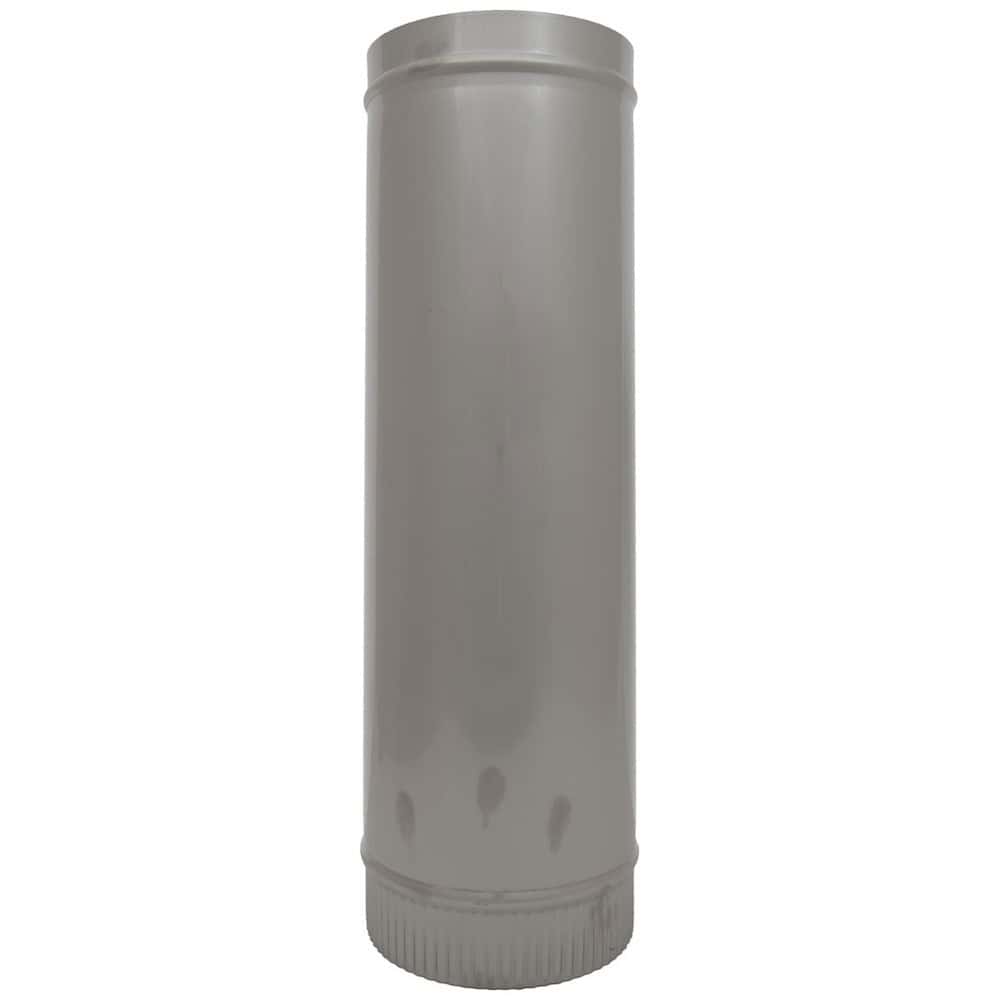

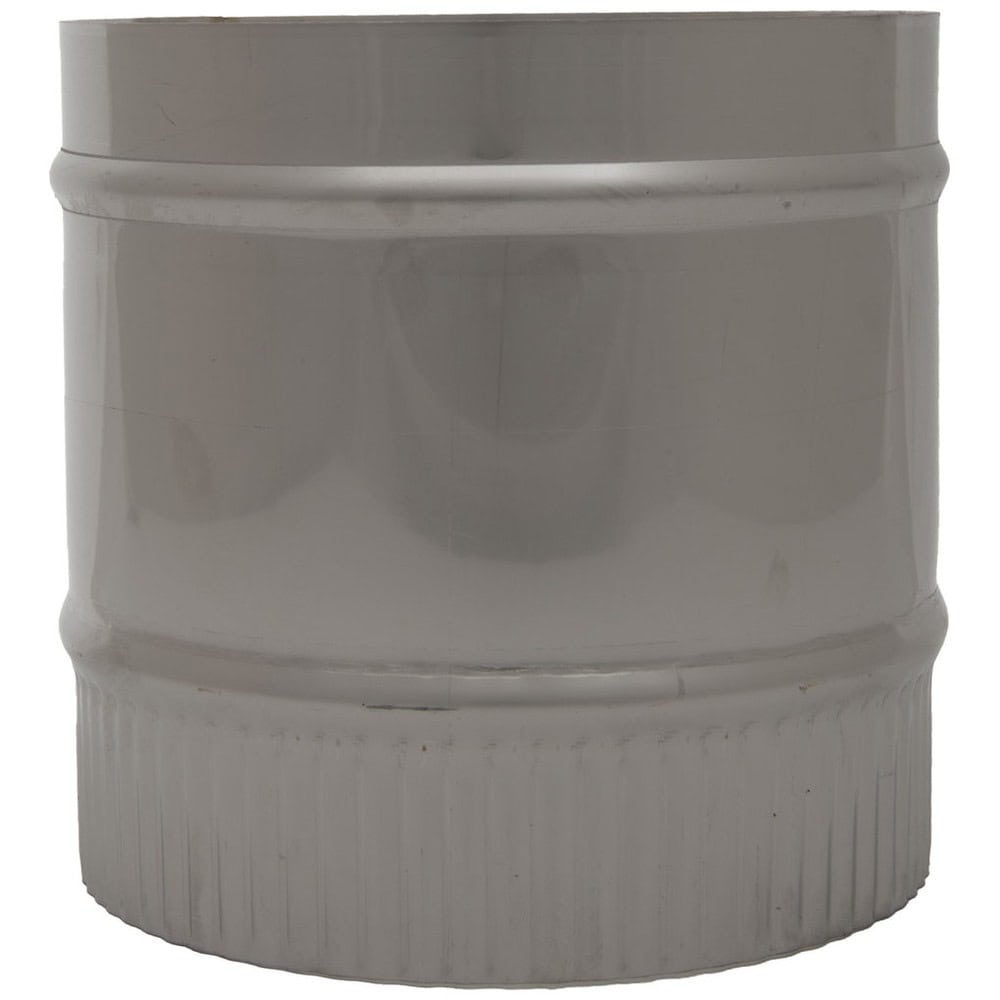

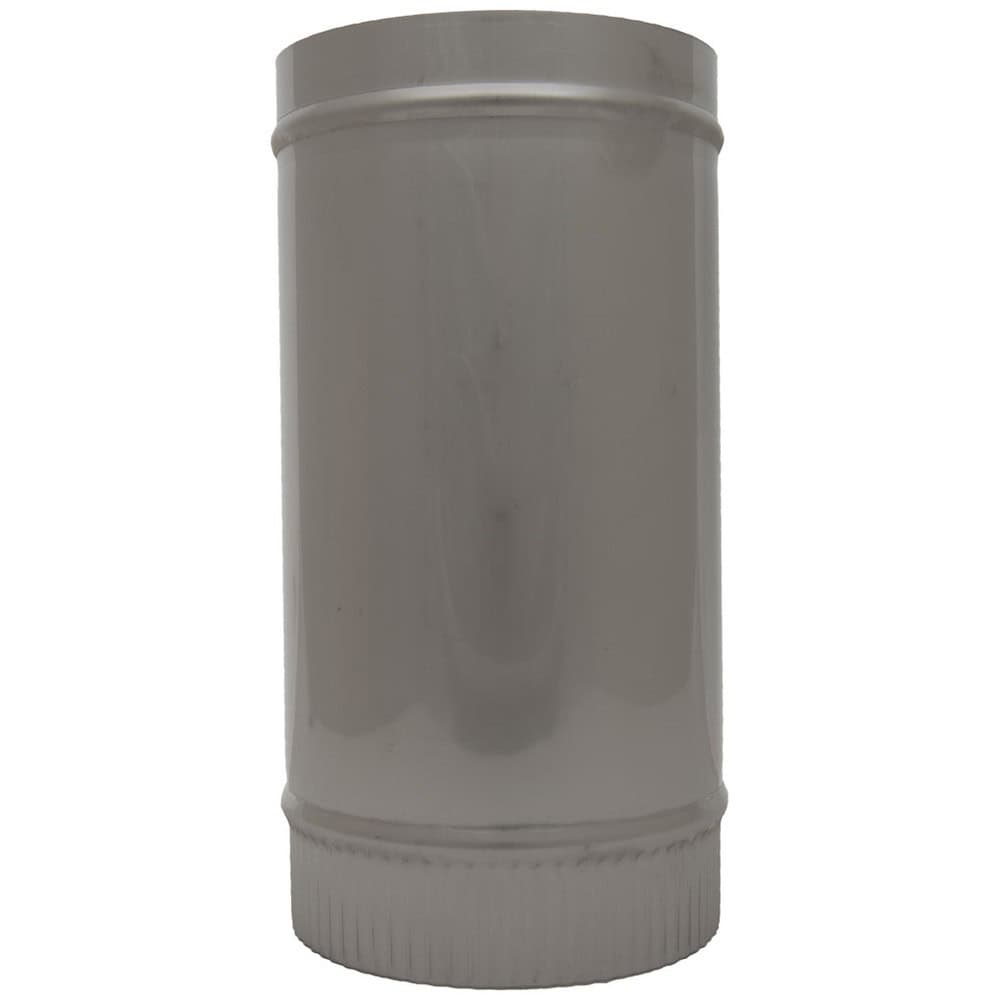

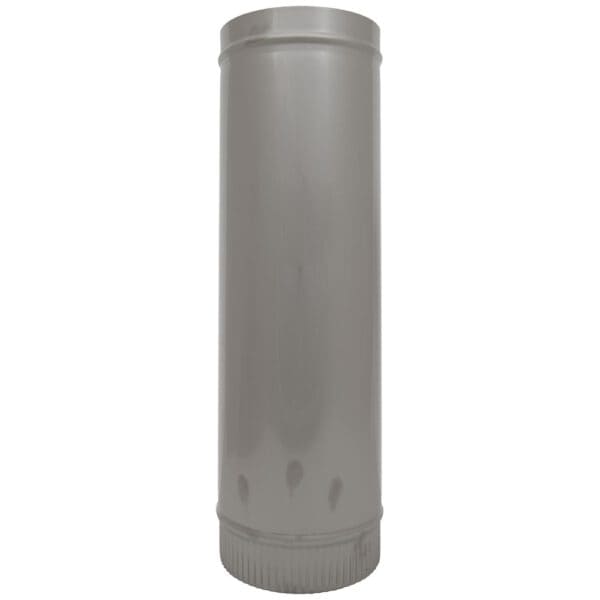

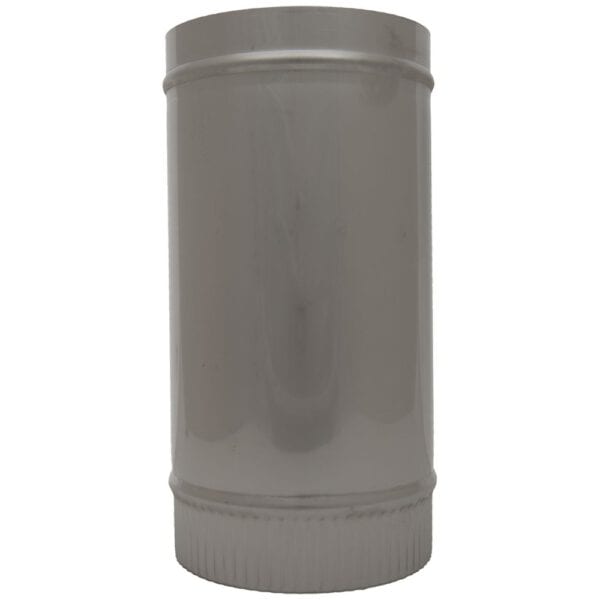

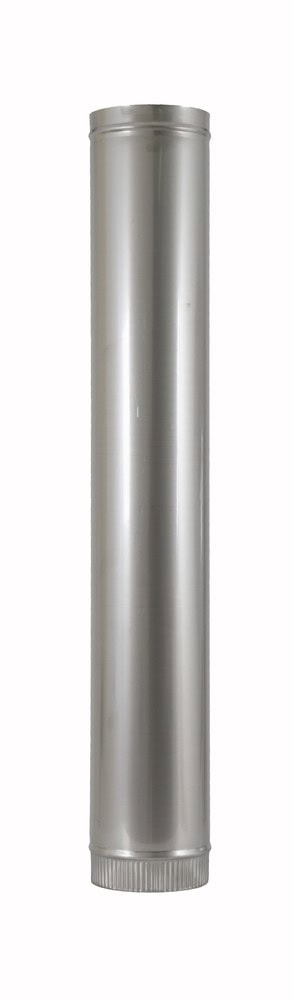

Our straight length single wall flue pipe is available in 150mm, 300mm, 500mm and 1000mm lengths, between 4″ – 10″ diameter. It is designed with an easy to use socket/spigot and quick action clamp jointing system.

Pipe Details:

Material: Manufactured using 1mm thick 316L Stainless Steel.

Finish: 2B matt finish – suitable for painting

Note: All pipes come with a 40mm crimp that is designed to fit into the stove spigot or another pipe, therefore the overall useable length of pipe will be 40mm less than ordered. E.g. a 300mm pipe has a usage length of 260mm.

Internal Pipe Diameter (inches)

Internal Pipe Diameter (mm)
4″ 102.3mm
5″ 127.5mm
6″ 153.2mm
7″ 178.0mm
8″ 203.4mm
9″ 228.0mm
10″ 254.3mm

Suitable for use on applications fired by gas, oil and solid fuel, and can be used to fuel all types of domestic appliances.

Approvals:  HETAS Approved & CE approved EN 1856-2:2009 T450 N1 D Vm L40100-G500



Additional information

Length

150mm, 300mm, 500mm, 1000mm
